An applied statistical method to identify desertification indicators in northeastern Iran

Abstract

Background

Desertification could be considered ultimate consequence of land degradation in an ecosystem. Iran with more than 75% arid and semi-arid areas involves fragile and susceptible ecosystems to desertification. We applied a statistical algorithm including regression trees and random forest techniques for determining main factors affecting desertification based on ESAs in Taybad-Bakharz region at northeastern Iran.

Results

The results indicated a significant correlation between the desertification hazard value with variables of wind erosion, precipitation, aridity index, technology development, slope index, vegetation state and land use changes.

Conclusions

Regression trees and random forest techniques in desertification hazard provide an absolute estimation of the relationship between dependent and independent variables. We can use a robust base for further investigations and refined with findings from in-depth studies carried out at the local scale.

Background

In recent decades, the challenges of environment regarding drying lake, groundwater depletion, land fissures, drought, migration, poverty etc. are highlighted in heart of Middle East, Iran, with more than 3000 years civilization. All of mentioned threatens indicated that civilization is collapsing due to ecosystem degradation particularly in arid areas. These consequences can be briefed in a word “desertification”.

If no remedial action is taken, desertification rate will be increasing significantly and threaten sustainable livelihoods at least for people of arid and semi-arid regions of Iran, areas with more than 75% expansion in Iran. Detecting, distinguishing and mitigation of the outcomes of desertification and finding main parameters affecting desertification rate in an area is most effective step in action plans of combating desertification (UNCCD, 1994).

Many methods such as mathematical models, parametric equations, remote sensing, direct observation, and measurements have suggested assessing desertification hazard in different regions of the world (Sepehr et al. 2007). In relation to desertification risk mapping, assessment, and forecasting, many studies can be found that mainly are based on empirical and regional models. European project of ESAs (Environmental Sensitive Areas) team that called MEDALUS (Mediterranean Desertification and Land Use) is one of the regional frameworks to detect sensitive areas regarding desertification risk in Mediterranean region (Kosmas et al. 1999). Ladisa et al. (2012), applied this method for assessing desertification risk in Apulia region, southeastern Italy and reported that this method shows efficient output regarding desertification vulnerability and detecting sensitive environments. Leman et al. 2016 used the GIS-based integrated evaluation model base on ESAs on two assessment sets in Langkawi, Malaysia. “Set A included indicators chosen from Malaysian integrated ESA tool¹ and set B involved indicators derived from five eco-environments in China. The results showed Set A in order to reveal environmental sensitivity is more appropriate and more efficient than Set B”. There is miscellaneous reports regarding application of the ESAs method to detect sensitive areas to desertification, such as Wijitkosum (2016), De Pina Tavares et al. (2015), and Sepehr et al. (2007). The common point of all these articles is the high efficiency of ESAs method for recognizing desertification-prone areas. Heretofore, many studies have been done regarding desertification risk assessment and forecasting, and in the majority of those emphasized on regional and empirical indicators and methods (Martínez-Valderrama et al. 2016; Ferrara et al. 2012; Karamesouti et al. 2015; Patriche and Bandoc 2017; Patriche et al. 2017; Salvati et al. 2016; Zambon et al. 2017).

Data mining knowledge, as a logical process for finding useful data through large amount of data, and particularly regression technique can be used for modeling the relationship between one or more independent variables and dependent variables (Ramageri 2010). For example, the regression tree and random forest techniques as two relatively new tree-based models optimized predictive performance by combining a large number of simple trees into a powerful model rather than a single tree model based on traditional regression trees (Skurichina and Duin 2002). Yang et al. (2016) used regression tree and random forest model to map topsoil organic carbon concentration in an alpine ecosystem. Their results showed that the two methods can be used as strong and effective modeling approaches in the mapping of soil organic matter concentration. This article aims to investigate correlation between desertification indicators and choosing main indicators affecting desertification by regression statistical methods based on ESAs framework in northeastern Iran. The most important indices participating in desertification risk were identified by regression tree and random forest techniques.

Methods

Study area

This study was applied in Taybad-Bakharz located in an arid and semi-arid environment of Khorasan Razavi province, northeastern Iran with an area of 4800 km² (Fig. 1). The livelihood of rural communities of the studied region is depends on livestock and farming. Precipitation varies between 100 and 250 mm based on topographic conditions with a wide temporal and spatial distribution. Mean annual temperature is about 16 °C, during the day in summer, temperature goes up 42 °C, and actual evapotranspiration changes between 800 and 2100 mm per year. The wind velocity ranges from 5.3 to 6.8 m/s, with the maximum occurring in May approximately 6 m/s. Moreover, over 120 days per year have wind. Additional file 1 shows the digital elevation model (DEM) of the studied area.

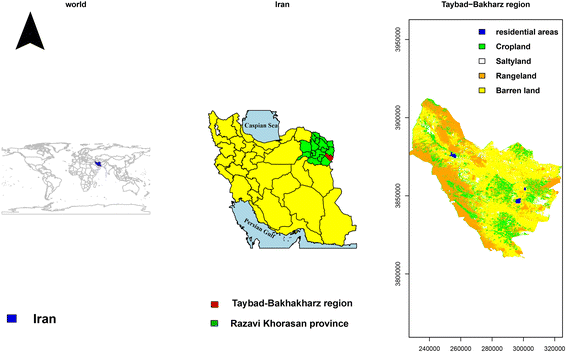

Fig. 1

Position map of study area in northeastern Iran

Calculating desertification hazard index

Interaction between main driving force factors and spatial-temporal changes of main factors have been led to desertification in the studied area. To select main criteria expert’s opinions were taken by Delphi decision-making framework. We applied the ESAs method to detect desertification-prone areas based on modified main criteria and indicators. Choosing and providing the indicators were according to the available information and maximum influence on desertification process in the region. To map layers ArcGIS; version 10.2 and R software; packages of raster, sp., rgdal, maptools, and lulcc were used.

According to the ESAs, the quality of each criteria was provided by geometric mean of considered effective indicators on criteria quality. Eq. 1 shows the relation used to calculate criteria quality index by geometric mean of indicators.

$$ \mathrm{QI}={\sum}_{\mathrm{i}=1}^{\mathrm{n}}=\sqrt[n]{{\mathrm{X}}_1\ast {\mathrm{X}}_2\ast \dots, {\mathrm{X}}_n\kern2.75em } $$

(1)

Where QI is criteria quality index and X showing indicators affecting the quality of each criterion.

Nine (9) main criteria affecting desertification susceptibility were chosen with indicators regarding the quality of each criterion. The criteria and indicators illustrated in Table 1. The quality layers were classified in four quantitative and qualitative classes as shown in Table 2. An interval weighing was considered between 0 and 4 for the quantitative value of qualitative status of each criterion.

Table 1 Main criteria affecting desertification and considered indicators for quality degree of criteria

Table 2 Quantitative and qualitative classes of criteria and desertification hazard

After providing the quality layer for each criterion involving nine quality layers, desertification hazard index was calculated by geometric mean of quality layers as shown eq. 2.

$$ DH={\left({CQI}^{\ast }{SQI}^{\ast }{GQI}^{\ast }{AQI}^{\ast }{VQI}^{\ast }S-{EQI}^{\ast }{EQI}^{\ast }{TQI}^{\ast } GWQI\right)}^{1/9} $$

(2)

where DH is desertification hazard value, and CQI, SQI, GQI, AQI, VQI, S-EQI, EQI, TQI, GWQI respectively refer to quality of climate, soil, geology, agriculture, vegetation, socio-economic, erosion, technology development, and ground water.

A land unit map (LUM) was considered for investigation of quality of each criterion and desertification status based on geomorphological facies. For providing LUM, imagery data of LANDSAT (TM and ETM⁺) were used (Landsat satellites). The reason for choosing geomorphology facies for LUM and calculating the status of each criterion and desertification risk in each of study unit is the relation to the slow changes of surface morphology during short time vs rapid changes of land-cover and land-use due to human activities particularly in recent decade in the studied region.

Regression trees

To identify the most effective criteria and indicators on desertification hazard, we applied CART (classification and regression tree) analysis. Classification and regression tree model is a nonparametric method introduced by Breiman et al. (1984). This method is able to predict the quantitative variables (regression tree) and classification variables (classification tree) based on a set of qualitative and quantitative variables (Yeh 1991). A classification or regression tree model has been formed from the several branches and some nodes. The first node that includes all the samples is called the parent node. Other nodes are called child nodes. Then, based on one of the predictor variables, two branches take place and this situation continues to the end node (Frisman 2008). Another parameter is pruning the tree structure and selecting the appropriate size of the tree. The CART analysis was done using R software (apart and rpart.plot packages).

Random Forest

Random forest is a non-parametric method and belongs to the collection methods that were obtained from machine learning methods in the late nineteenth century (Catani et al, 2013; Pourghasemi and Kerle, 2016). This algorithm is a set of classification and regression trees developed by Breiman (2001). Breiman proposed random forests, which add an additional layer of randomness to bagging (Liaw and Wiener 2002). To perform this procedure, several parameters must be determined. The first parameter is the number of predicting trees. In this study, 500 trees were created. The second parameter is the number of the predictor variable with no need to prune trees in classification. The proximity matrix was used for identifying structure in the data (Breiman 2002). The Random Forest package provides an R interface to the Fortran programs by Breiman and Cutler (available at https://www.stat.berkeley.edu/~breiman/).

After calculating desertification hazard index, regression trees and random forest technique was applied for identifying preference of main criteria affecting desertification. The sample population involved 25 land units provided based on geomorphology facies with 21 variables including indicators considered for criteria quality as independent variables and desertification hazard as dependent variable. The flowchart of methodology applied in this study is shown in Fig. 2.

Fig. 2

General outline method used in the study

Results and discussion

Desertification hazard areas

The desertification status was calculated on each of separated land units. The Kavir areas (salty-clay pans and Sabkha) are smallest zones and low-level pediment fan and valley terrace deposits cover largest areas in the studies region as shown in Table 3 and Fig. 3. Furthermore, most geomorphology facies involve badlands and pediment deposits surfaces and concentrated on the east and northwest region, where land-use is mainly agriculture and cultivated areas. The geology map of the studied region shown in the Additional file 2.

Table 3 Frequency and distribution of geomorphological facies (lands unit) in Taybad-Bakharz area

Fig. 3

lands unit map (LUM) in the studied area. The land unit map provided based on geomorphological characteristics including 25 geomorphic facies

Results indicated that regarding climate criterion the studied area classified in high vulnerable to desertification hazard, in othe word shows a high-risk class of desertification as 65% of the studied area are susceptible in relation to climate factors. The results showed that indicators considered for geology criterion are main factors affecting desertification, so that about 88% areas are prone-area to desertification. In addition, the criteria of vegetation and agriculture show undesirable conditions as well as 85% areas considered desertification-prone area regarding vegetation, where it is 63% for agriculture indicators. In terms of the technology development, 80% of the study area gained moderate class of desertification hazard. Erosion criterion including wind and water erosion indicated that 57% of study area are classified in high-risk desertification class for wind erosion and 63% areas shows high level for water erosion. Moderate conditions classified regarding groundwater and soil criteria. Therefore, based on impact degree of indicators regarding desertification susceptibility, more than 20% of Taybad-Bakharz region shows susceptible and prone area to desertification. Ultimately, a desertification susceptibility classified in two sensitivity levels involving moderate degree with 37% of the area, and high degree with 63% of the areas. The classification categories of the indices and desertification hazard in the form of the map are shown in Fig. 4. It should be noted that all of layers and maps were classified into four classes based on Table 3. The output maps have been presented based on gained classes, for example for the geology and climate criteria, the desertification does not show severe class, so this class was ignored in the legend while for erosion criterion, the legend includes all of the classes as it gained all of the desertification risk classes.

Fig. 4

desertification susceptibility areas for main indicators. Desertification susceptibility map provided based on preference degree of each indicators

Regression tree outcomes

The results of CART for the 21 targets outcome variables-desertification hazard are presented in Figs. 5, 6, and 7, respectively. Figures 6 and 7 includes the predictor variables and the value that split each subgroup. Within each node, the mean score or proportion of participants in each response category are presented. Figure 5 shows the complexity parameter (cp) option of the summary function that instructs it to prune the printout, but it does not prune the tree. The cp shows minimum error so that the regression tree is pruned by cp wherever the error shows minimum amount, the regression tree is pruning. The pruning based on cp is a validation test in regression tree, indeed before regression; a training was used by 30% of total data. For more information the raw data used in statistical methods has been presented in Additional file 3.

Fig. 5

cp Plot. A validation test for regression tree method based on minimum error

Fig. 6

regression Tree with Package rpart

Fig. 7

selected regression tree

In the Fig. 6, n shows the land units and means the amount of the polygons which was determined based on geomorphology map (geology and morphology maps). All of indicators were evaluated in each land units (polygone) separetely.

Given to the Fig. 6, the first split for desertification hazard status is based on the score of the wind erosion index. The subgroup that represented higher hazard taking scores (< 2.26, > = 2.26) and was further split based on water erosion and then land use change status on the left (This subgroup does not split again). Also, crop pattern status and the next split that was related to the aridity index and vegetation utilization indices (on the right). Vegetation utilization and land-use change criteria showed relatively lower correlation with desertification hazard value.

In Fig. 7, Parent group shows the desertification risk with mean 1.92, the children group presents the erosion status including water and wind erosion. The water erosion is a sub-tree or a branch. The highest correlation was obtained between wind erosion and desertification. The water erosion only involves one branch and its division does not continue in regression tree. The crop pattern shows highest correlation with wind erosion with continuous division and after that, aridity index indicates correlation with crop pattern. Therefore, desertification risk is affective by wind erosion with a powerful correlation with crop patterns and aridity index. In addition, as water erosion shows a weakness correlation, we can have a judgement that wind erosion has most powerful correlation with desertification in all of land units.

The regression tree used when we have numerical variables. This method tries to recognize highest correlation between variables by using Gini coefficient, Chi-square, MSE, and entropy. The Gini coefficient find homogeny variable and regression tree will be found correlations based on mean of variables. The regression presents a classification by Gini coefficient by number of successes and failures.

The cross-validation shows only a small difference in desertification hazard status. Given to the regression trees outcomes, among 21 independent variables, indicators such as wind erosion, precipitation, soil EC, soil texture, groundwater (SAR) and slope had the greatest impact on desertification hazard, respectively. These indicators are highly associated with the value of desertification hazard. Wind erosion and cropping pattern indices in 18 land units are identified as the most important factor affecting desertification hazard. Also, aridity index is listed as the most important factors of desertification in 13 land units. Although, water erosion index have less impact on the hazard of desertification (7 land units). Finally, wind erosion, cropping pattern, aridity index and precipitation are identified as the most important indicators that affected desertification hazard in this region.

Random Forest outcome

The results from the variable selection random forest are shown in Figs. 8 and 9. Independent variables involving 21 indicators ordered based on mean decrease accuracy. The accuracy measure determined main effective criteria including wind erosion, technology development, aridity index, slope index, soil EC, land-use changes, vegetation state, precipitation, geology, water declination, and soil texture. Moreover, based on variable importance for the RF-model, we observed that wind erosion, technology development, aridity index, slope index, vegetation state and land-use change variables are relatively most important on desertification hazard of Taybad-Bakharz region, respectively. The important percent values of these variables measured 10.48%, 7.5%, 6.8%, 5.9% 5.3%, and 5.2% respectively.

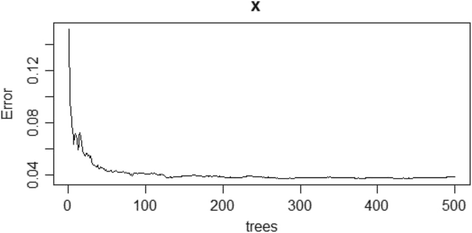

Fig. 8

plot showing the decrease of (in terms of out-of-bag classification errors, OOBE) OOBE with increasing number of trees T# in the RF structure. A working value of T# = 300 was chosen for the RFtb model structure used in the tests and experiments

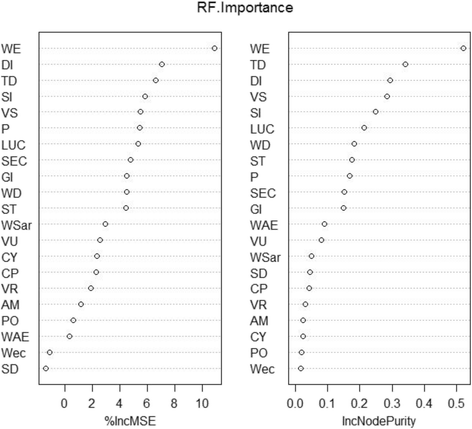

Fig. 9

variable importance calculated by mean square error (MSE) and purity or entropy degree

As shown in Fig. 8, in forest random method, at the first will be created classification trees that called tree of vote. The forest will be decided and classified base on the most vote, then average of tree’s outcome presents the regression. In Fig. 9, the preference of each variable was calculated by mean square error (MSE) and purity or entropy degree. The less MSE indicates an indicator with more preference.

Conclusions

Land degradation and desertification consequences such as dust storms, drying of lakes, water scarcity, poverty and migration, and ultimately ecosystem collapse in Iran with more than 75% drylands require a carefully understanding of the desertification process and recognizing driving forces. This study examines the performance of a statistical method to identify the most important criteria affecting desertification process and risk. Studied region showed desertification-prone areas with 63% high-risk level of desertification. Application of regression trees and random forest techniques identified the most important criteria affecting desertification and recognized that indicators such as wind erosion, technology development, aridity index, slope index, precipitation, vegetation state and land use change are major indicators affecting the quality of criteria and desertification in the Taybad-Bakharz. The results of this research indicated that erosion factors including water and wind erosion are the most important desertification factors in the studied area. Over-grazing and vegetation degradation in the region particularly in recent decade led to degraded soils and decreasing fertility, so the erosion rate is raising in the study area. Data mining process and particularly regression trees and random forest technique in desertification hazard can be recommended as a robust base for further investigation of desertified lands for best management of processes in these areas.
