Application of re/insurance models to estimate increases in flood risk due to climate change

Climate change, catastrophe models and Canada’s disaster management policy

Climate change impacts regions across the globe in different ways, particularly in how it affects the hydrological cycle. The Intergovernmental Panel on Climate Change (IPCC) (2012), p. 13 states that “it is likely that the frequency of heavy precipitation…will increase in the 21^st century over many areas of the globe”, particularly in high latitude regions like Canada. Greater precipitation will cause “increases in local flooding in some catchments or regions” (Intergovernmental Panel on Climate Change (IPCC), 2012, p. 13). The impact that climate change has had on historical flood-related losses (i.e., direct economic damages) is less clear. Socioeconomic development, rather than climate change, has been considered the primary contributor to increasing global natural hazard losses (Bouwer 2013), and increasing exposure of people and property in flood-prone areas is considered to be the primary driver of growing flood losses in recent decades (Kundzewicz et al. 2014).

Changes in the frequency and intensity of rainfall over the next century will likely create more opportunities for flood damages to occur in some regions (Rosenzweig et al. 2002; Bouwer 2013; Kundzewicz et al. 2014). Quantifying future flood risk is difficult, however, because there are many factors that influence flood losses, including uncertainties surrounding emissions pathways (Bouwer 2013). Flood risk is the product of exposure (i.e., assets likely to be affected by flooding), the frequency of occurrence (i.e., how often flooding impacts an area), and vulnerability (i.e., susceptibility to suffering damages) (de Moel et al. 2009). Climate change influences flood risk in that the probability of flooding events changes in response to greenhouse gas emissions. For example, one of the key impacts associated with different emissions scenarios is changes in the return period of extreme precipitation events (e.g., “a 1-in-20-year annual maximum daily precipitation event is likely to become a 1-in-5-year to 1-in-15 event by the end of the 21^st century in many regions”, including Eastern Canada) (Intergovernmental Panel on Climate Change (IPCC), 2012).

Perhaps due to the complexity in quantifying flood risk, there is a relatively small body of literature that explores the impact of climate change on flood losses (Bouwer 2013). Bouwer (2013), for instance, states that “there are only few studies that have translated such changes in extreme weather to economic impacts, and very little quantification is usually given of how large the impact from climate change on extreme weather losses potentially is” (p. 916). Moreover, existing studies in developed nations focus primarily on European countries and the United States, with few studies from Canadian coastal regions (Bouwer 2013; Kundzewicz et al. 2014; Lemmen et al. 2016). Efforts that quantify flood risk are beneficial particularly for determining what is at risk, estimating increases in losses over time, and analysing how policymakers and decision-makers can address these growing risks (e.g., finding a balance between risk reduction costs and benefits).

Many of the factors that influence flood risk are found in catastrophe (CAT) models (Bouwer 2013), including exposure, hazard and flood probability reflected as a stochastic event set (Sampson et al. 2014). The stochastic event set is composed of thousands of flood event simulations that are informed by observational data but also capture events that exceed the magnitude of historical data to capture tail-end risks (i.e., rarely occurring floods that have potentially catastrophic consequences) (Sly and Ma 2013). The event set offers a “database of extreme precipitation events over the catchment(s) that drive fluvial or pluvial risk” (Sampson et al. 2014, p. 2306). CAT models also contain location-specific information, such as the siting and characteristics of property assets, and can therefore estimate damage due to certain flood depths (depth-damage functions) to determine which assets are most vulnerable to flood-related losses (Lloyds 2014; Sampson et al. 2014). However, research coupling climate change and CAT model data is sparse, meaning there is an opportunity to make better use of this technology to inform public policy and investments aimed at reducing flood risk.

Canada and 186 other countries have adopted the Sendai Framework on Disaster Risk Reduction (Henstra and Thistlethwaite 2017b). The framework identifies four “priorities for action”, which include using risk assessments to better understand disaster risk; strengthening governance to manage disaster risk; investing in disaster reduction and resilience; and enhancing disaster preparedness for effective response in order to “build back better” (United Nations International Strategy for Disaster Risk Reduction (UNISDR), 2015). Although these principles are not new—they build on a solid foundation of research that dates back more than 70 years (e.g., White 1945; Burton et al. 1978; White et al. 2001)—they have experienced a renewed emphasis as the costs of natural disasters have risen dramatically in recent years.

Despite Canada’s commitment under the Sendai Framework to adopt risk assessment as the basis for disaster risk reduction, many Canadian jurisdictions lack up-to-date flood risk information (MMM Group 2014). Although the Government of Canada has a renewed effort underway to improve flood mapping (Natural Resources Canada, 2017), a lack of information has impeded efforts to prevent or reduce flood consequences on people and property. The primary objective of this research was to use CAT models to estimate the influence of climate change on flood risk in a Canadian municipality, in order to inform flood risk management decisions.

Study area

The study area consisted of the urban core of Halifax Regional Municipality (HRM), Nova Scotia, Canada—a geographically large municipality with spatially distributed populated areas, particularly along the coastline (Fig. 1). In comparison to other parts of the municipality, the urban core has the highest population density, encompassing approximately 74% of the 400,000 people who reside in HRM (Statistics Canada 2016).

HRM has a relatively mild climate compared to other parts of Atlantic Canada, with a mean annual temperature of 7.5 °C and mean annual precipitation of 1468 mm (Environment and Climate Change Canada (ECCC), 2018). The city experiences few extreme hot and cold days, due to moderation by the Gulf Stream, but it faces occasional hydrological risks due to hurricanes, Nor’easter storms, and rainfall-driven riverine flooding. This research focused on rainfall-driven riverine flooding, since it had recently affected neighbourhoods in HRM and many other communities in the Canadian Maritimes (Harding 2017; Weeks 2017). Riverine flooding can occur when extreme rainfall or ice jams cause rivers to reach their capacity and overflow onto surrounding land. Since studies in Nova Scotia have focused primarily on coastal flood impacts (including sea level rise) (see Leys 2009; Lemmen et al. 2016), this study offered an opportunity to develop new knowledge about flood risks on Canada’s East coast. In addition, HRM staff had recently identified a need to update their riverine flood maps and floodplain regulations—HRM restricts residential development in the 20-year floodplain but allows flood-proofed development in the 100-year floodplain (Environment and Climate Change Canada (ECCC), 2013; Berman 2016; Irish 2016).

In the event of a disaster, governments provide compensation funds to those affected. The availability of reliable climate change scenarios for this part of Canada also supported its selection as a test site for projecting the influence of climate change on flood loss estimates in the near and long-term future. Finally, the study area covered a reasonably small catchment area, which allowed the researchers to maximize the likelihood that changes in rainfall conditions caused by climate change would produce relatively uniform responses in riverine flood conditions. The next section describes the study’s research design and methods.

Mapping present flood risk

The research was divided into two steps, each employing a distinct methodology. The first step focused on mapping the spatial distribution of present flood risk in the study area. The second step quantified financial losses resulting from various flood events under high-emission and low-emission climate change scenarios. Models produced for re/insurance purposes were used in this study to quantify present and future flood risk resulting from direct losses on residential properties.

The goal of the first part of this research was to use an existing 2D hydrodynamic flood model to map the location of residential properties at risk of riverine flooding (i.e., exposure to flooding), and determine which properties had a higher susceptibility to damages than the rest (i.e., higher vulnerability). For example, not all properties susceptible to a 100-year flood would be affected equally; those located in areas where the depth and velocity of flood waters is highest would suffer the greater damages. To this end, the researchers partnered with JBA Risk Management, a firm with international expertise in natural hazard modelling, to gain access to data outputs generated by its proprietary 2D hydrodynamic flood model. This model has been used by the Canadian insurance industry to quantify the number of properties vulnerable to flooding (Parliamentary Budget Officer (PBO), 2016) and JBA’s datasets assist insurers in pricing premiums for individual properties (JBA Risk Management 2018). JBA’s model maps flood-prone areas in Canada by incorporating federal government data on the location of major and minor rivers, historical streamflow, and water levels, as well as other topographical and environmental inputs (Hunter et al. 2007; Lamb et al. 2009; Faulkner et al. 2016). Two model outputs were of specific interest to this research: (1) flood hazard extents, which depict the likely inundation zone for floods of different probabilities; and (2) annual damage ratios (ADR), which assign values between 0 and 1 to individual grid cells that demarcate the susceptibility to physical flood damage. Building footprints and building characteristics were retrieved from HRM to pinpoint the location of residential properties in the study area. Through a unique data-sharing agreement, this was the first study to use the model for research purposes.

Since the criteria were all spatially-explicit, a geographic information system (GIS) was used to map and quantify the number of residential buildings at risk of flooding. The spatial analysis did not, however, incorporate specific property characteristics that could reduce flood damages due to lack of available data, including property-level flood protections (e.g., backwater valves).

To create an additional subgrouping of high-risk properties, a supplemental spatial analysis was conducted. This spatial analysis associated each building footprint with an ADR value to then classify the buildings based on their vulnerability to flood damages. Buildings that intersected with multiple ADR grid cells were given the maximum damage ratio. The ADR dataset is reflective of “the expected annualized cost of flood damage at a specific location, expressed as a proportion of the sum insured” (JBA Risk Management 2017). In this study, “high risk” properties were those that were inundated by the 100-year flood (1% probability of occurring on any given year) or more frequent events, and they had a statistically higher ADR than the rest of the properties at risk (i.e., the top 25% of the dataset) (see Appendix 1 for further details). This qualitative classification scheme shows which properties in the study area, relative to other at-risk properties, have a higher annual probability of being flooded, and are more likely to suffer flood damages. Finally, the areas where high risk properties concentrate where identified.

Modelling present and future flood-related losses

The goal of the second part of this research was to quantify present and future losses incurred from flood damages to residential property, and how changes in losses influenced the average annual flood losses (AAL). AAL is a value that is equivalent to a “pure premium” and thus can be used as a basis for calculating risk-based flood insurance premiums available to consumers, whereby a higher AAL is likely to result in higher market premiums (Sly and Ma 2013; Lloyds 2014; Ermolieva et al. 2017). AAL is calculated “as the sum product of the mean loss and the annual likelihood of occurrence (i.e., the event rate) for each event in the [catastrophe model] event set” (Grossi and TeHennepe 2008). For this research, AAL serves as an indicative figure for detecting overall changes in the costs of flooding over time.

A second model, G-CAT® Canada Flood Model, was used for this part of the research (Guy Carpenter 2015). G-CAT® is built using JBA’s hazard maps, flood defence data, and a 10,000-year stochastic event set, but it also incorporates insurance policyholder information from various Canadian insurers to calculate the financial exposure of insured assets (Contant 2015). In the HRM study area, insurance policy-level exposure information was available for about 56% of the population. The losses calculated in this study are therefore reflective of insured losses for that 56% and do not incorporate policy limits and deductibles.

G-CAT® can model the influence of many factors related to riverine risk (e.g., snowmelt), but for this study, G-CAT® was used solely to model rainfall-driven riverine flooding. The decision to focus on rainfall-driven riverine losses was a result of the availability of climate change data that was used to adjust G-CAT® to reflect future climate change. More specifically, climate-adjusted intensity-duration-frequency (IDF) curves at specific gauge locations across Canada have been developed in recent years (see Simonovic et al. 2016; Sandink et al. 2016). IDF curves capture the intensity of rainfall (i.e., how much rain falls over a period of time), its duration (i.e., how long this rain period lasts), and its frequency (i.e., how often this type of event occurs) (Auld 2012). These IDF curves are available publicly through an online portal that allows researchers to select temporal periods, emissions scenarios, and climate change models at various rain gauge sites across Canada.

Climate-adjusted IDF data were retrieved at a specific rain gauge site in the study area, for early-, mid-, and late-century scenarios under a 2 °C and 4 °C global temperature increase (see Appendix 2 for details). Given that G-CAT®‘s flood event catalogue is defined by daily streamflow estimates, the 24-h IDF curves served as inputs for adjusting G-CAT® to reflect future climate change. It was assumed that precipitation changes in the study area would have a direct impact on rivers, since rivers often have similar responses to similar precipitation patterns (United States Geological Survey (USGS), 2016). This assumption allows for changing the frequency of occurrence of flood events in the entire probability curve (including low probability and high probability events) to reflect increases in the volume and intensity of precipitation under climate change. The size of the study area is best suited for this type of approach, where the relationship between a change in precipitation and flood is most evident. All loss estimates presented associated with single flood return periods (retrieved from an exceedance probability [EP] curve) and AAL, including those for future climate change, reflect the existing built infrastructure and do not account for additional risks caused by socioeconomic changes, future build up in flood-prone areas, and indirect losses.

Present flood risk

Findings show that of the 54,000 single-dwelling residential buildings within the study area, 11% are at risk of suffering damages due to riverine flooding. Approximately 1300 residential properties (2.4% of total) can be considered high risk based on this study’s classification scheme.

By mapping the location of these at-risk properties, it was possible to identify certain zones with a high density of residential properties exposed to flood hazard across the study site. The highest concentration of flood exposure occurs along waterbodies and channels, with damage also affecting low-lying areas adjacent to these features. Researchers calculated the number of high risk properties within postal code areas to identify where high risk properties concentrate across the study area (Fig. 2).

The results from the G-CAT® model estimate that a moderate probability riverine flood (100-year EP) caused by heavy rainfall under the current climate would result in CAD $7 million in losses, while CAD $79 million in losses from residential property damages alone emerge from a low probability flood (500-year EP). The current annual expected loss (i.e., AAL) is CAD $543,000, whereby losses from events with an average recurrence interval of 100-years or greater are primarily influencing this value. More frequent flood events (e.g., 5-year EP) do not cause residential flood losses and thus do not contribute to the AAL. This finding is consistent with HRM’s planning regulations that prevent residential development in the 20-year floodplain.

Future flood risk

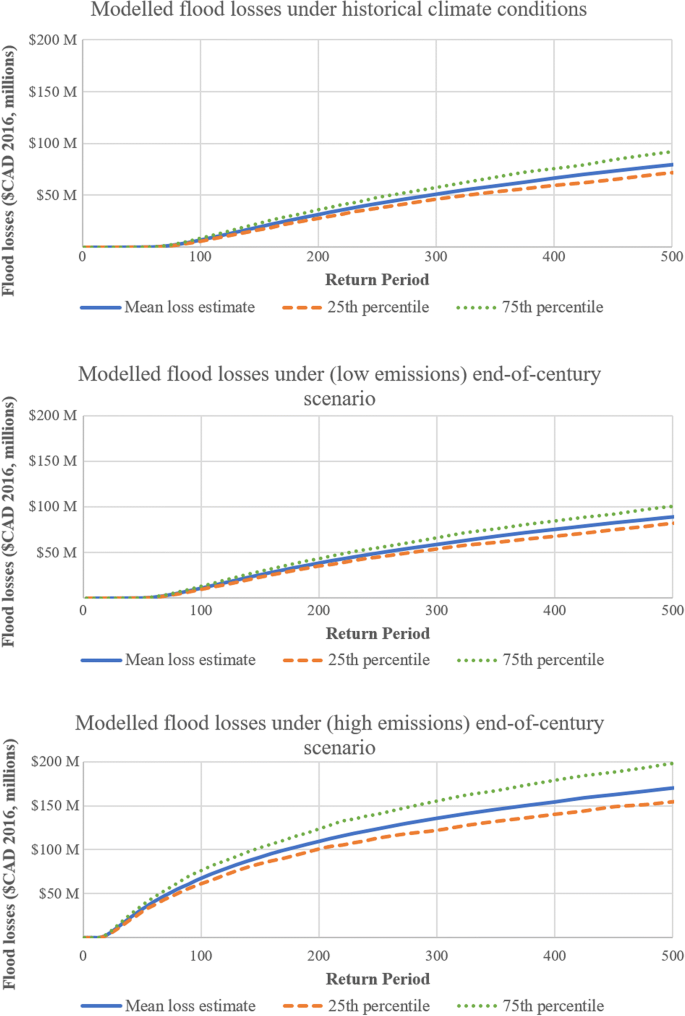

Changes in flood losses due to climate change were calculated using the G-CAT® model under early-, mid- and late-century scenarios. Results show that, depending on the climate change trajectory, there are significant material differences between how flood losses change under low emissions (2 °C) and high emissions (4 °C) scenarios (Fig. 3). For example, due to changes in rainfall intensity expected in the study area, losses that would result from a 100-year EP flood would increase from CAD $7 million to CAD $67 million in a 4 °C world by the end of the century (Fig. 4). By contrast, losses for the same flood event in a 2 °C world would incur $10 million in damages by the end of the century. The differences between the two emissions scenarios stem from differences in rainfall intensity expected to occur during a 24-h period. The 100-year rainfall (24-h duration) event under historical conditions produced 6.3 mm of rain per hour; but this rate changes to 6.49 mm/hour under a 2 °C world and 7.69 mm/hour under 4 °C world.

Average annual losses are projected to increase by 300% by the end of the century under a 4 °C climate change scenario (Fig. 5). Floods that have a high probability of occurring each year (e.g. 5-year EP) show little or no change in flood losses depending on the climate scenario. Meanwhile, larger floods that have a comparatively lower probability of occurrence each year (e.g. 100-year EP) show significant increases in flood losses under future climate scenarios. When aggregating these flood events together to calculate the AAL, the losses associated with events that have 10-year to 1000-year EP are primarily driving the increase in AAL. This suggests that present flood management is effective at handling frequently occurring floods and any climatic changes associated with these events. However, flood losses increase disproportionately in relation to comparatively lower probability-high impact events. In their analysis of the distribution of claims under the U.S. National Flood Insurance Program, for example, Cooke et al. 2014 found that “the tail of flood insurance claims seems to be getting fatter over the time period in our data. This would indicate the extremes are getting even more extreme.”

Implications for Canadian flood risk management policy

There are three main lessons for Canadian flood risk management policy. First, there is a need for frank and inclusive discussion about (1) how much flood risk is acceptable to the community; and (2) controls on further growth of exposure in these areas if the risk is deemed unacceptable. Second, the research findings support Canada’s commitment to the Sendai Framework on Disaster Risk Reduction and flood risk reduction efforts. Third, projected increases in flood losses put into question long-term insurability in the Halifax area, and highlight a broader problem facing many other areas in Canada as well (Thistlethwaite 2016).

International literature explains that the “contribution from increasing exposure and value of capital at risk to future losses is likely to be equal or larger than the contribution from anthropogenic climate change” by mid-century (Bouwer 2013, p. 927). The assessment presented here estimates that average annual losses could increase by 137% by mid-century and 300% by late-century due to climate change alone. This suggests that HRM and other municipalities facing similar risks will need to reduce property exposure by preventing the growth of exposed assets in flood-prone areas. Strict land use regulations on floodplains represent the main avenue for preventing this growth of exposure. In Nova Scotia, municipalities like HRM prevent residential development in the 20-year EP floodplain, but allow floodproofed residential development in the 100-year EP floodplain (Nova Scotia 2013). The results of this study support more strict land use regulations that mitigate risk from events that may be rare today but could become more frequent in the future (e.g., the 500-year EP event) and to enhance current land use regulations (e.g., prevent any new residential developments on the 100-year EP floodplain). These measures can limit new development in areas already vulnerable to flooding and subject to growing climate change risk during the lifespan of the property.

The results of this research support Canada’s adoption of the Sendai Framework on Disaster Risk Reduction. Historically, Canada has used a primarily “structural” flood management approach, whereby engineered solutions (e.g., building dikes and levees) have been built to reduce risks, and governments were responsible for compensating victims and rebuilding to pre-disaster conditions in the aftermath of a disaster. The findings of this research show that flood risk could increase substantially over time as a result of climate change, which justifies the continued use of risk reduction measures for dealing with existing high-risk properties. This can be accomplished, in part, by ensuring that homes that are rebuilt after suffering flood damage incorporate protections, such as elevated foundations and water-resistant materials, to mitigate future flood damage (Kovacs and Sandink 2013). The provincial governments of both Nova Scotia and Alberta have offered to buy homes that were severely been damaged by floods in recent years (Cryderman 2013; Pace 2016). This strategy is best approached through an intergovernmental effort that is not currently in effect, because municipalities have reported difficulty in being able to buy out properties on their own (Deacoff 2015).

Increases in AAL reveal that insurance availability and affordability could be compromised in the future. It is estimated that there are currently 5–10% of residential properties in Canada that are not able to purchase flood insurance or be offered affordable premiums given their high-risk levels (Calamai and Minano 2017). The results of this research show that current flood risks can increase over time, meaning that residential properties will be more frequently impacted by damaging flood events. This can have two implications on private insurance markets: (1) risk-based premiums could become more expensive in the future, and (2) private insurance could become inaccessible to a growing number of homeowners due to their increasing risk levels. As governments in Canada looks to shift financial liabilities away from publicly-funded disaster assistance programs (Henstra and Thistlethwaite 2017a), governments may need to create mechanisms to address insurability gaps in high risk zones in partnership with insurers. By managing and controlling the growth of flood risks, governments can ensure that insurance remains affordable and available to most Canadian residential property owners.

Relevance for international scholarship and future research

This research contributes to the growing body of literature that focuses on quantifying flood risks across global regions. Research findings show that future flood risks could increase in HRM, and this is consistent with what is expected in European flood-prone regions as reported by Feyen et al. (2009), Bouwer et al. (2010), Te Linde et al. (2011), and Bouwer (2013). Although this study does not incorporate socioeconomic change, it does present comparable findings. For example, in the HRM study area, climate change could cause increases in AAL between 37%–137% by mid-century, while in the Rhine basin in the Netherlands, AAL is projected to increase from 43 to 160% by 2030 due to climate change alone (te Linde et al. 2011).

Although this study follows Bouwer’s (2013) “framework for quantitative modeling of economic damages from extreme weather”, it is necessary to emphasize that this study is a first assessment for quantifying flood risks in the Canadian Maritimes, and there are some limitations. One key gap is that the methodology used does not incorporate projected socioeconomic changes (e.g., population growth) and adaptation scenarios to quantify how various adaptation solutions could be most effective for reducing existing risks. Studies that compare adaptation options (e.g., structural vs. nature-based options; changes in land use) can help identify best strategies for reducing risks and promoting the realization of adaptation projects that have a positive return on investment (Lemmen et al. 2016). Second, there is a potential need to create guidelines on how to conduct climate adjusted-flood risk assessments at the local scale (e.g., data and models available, components to analyze) in order to facilitate access to this information to governments and ensuring that model outputs can be compared between jurisdictions. Finally, future studies should also capture other aspects that contribute to flood risk (e.g., public assets) as well as social vulnerability indicators since this analysis solely focused on residential property loss.
